Hydrualic Dressing Unit
A hydraulic dresser is equipped on both grinding & regulating wheels. Various types of from dressing can be achieved with optional template.
Wheel Spindle
The hydrostatic Babbitt type spindle bearing with a 3 point support design and pressurized, filtered , recirculating oil system, eliminates metal-to-metal contact, thus providing a heavy duty grinding capability as well as high vibration dampening performance. A pressure switch interlock prevents spindle start-up until oil pressure is established. The pressure switch interlock also stop the spindle if the oil pressure fails, thus providing a longer spindle life.
Machine Structure
The machine base is made of Meehanite casting, which is normalized and stress relieved, providing maximum rigidity to assure machine stability and vibration free operation.
Hydraulic System
The hydraulic & lubrication system is air cooled to maintain constant oil temperature, and is also separated from the machine to eliminate vibration and dissipate heat.
規格
| 說明/型號 | STC-24S / NC / CNC | ||
|---|---|---|---|
| 研磨能力 | 最大研磨直徑(標準刀架) mm | Ø1 ~ Ø80 ( Ø0.04" ~ Ø3.15" ) | |
| 最大研磨直徑(特別刀架) mm | Ø80 ~ Ø150 ( Ø3.15" ~ Ø6" ) | ||
| 自動進給量(NC型) mm | 0.001~9.99 | ||
| 砂輪 | 砂輪主輪轉速 rpm | 1050 | |
| 修整手輪進給 | 每刻度 mm | 0.01 (0.0005") | |
| 每轉 mm | 2 (0.0625") | ||
| 調整輪 | 調整輪主軸轉速(無段) rpm | 10~250 | |
| 手輪 | 每刻度 mm | 0.05 (0.002") | |
| 每轉 mm | 3.5 (0.2") | ||
| 旋轉角度(左/右) | ±5° | ||
| 傾斜角度(前/後) | +5° ~ -3° | ||
| 修整手輪進給 | 每刻度 mm | 0.01 (0.0005") | |
| 每轉 mm | 2 (0.00625") | ||
| 上滑版微調進給手輪 | 每刻度 mm | 0.05 (0.002") | |
| 每轉 mm | 9 (0.35") | ||
| 下滑版微調進給手輪 | 每刻度 mm | 0.001 (0.00005") | |
| 每轉 mm | 0.2 (0.00625") | ||
| 馬達 | 砂輪馬達 HP | 20 / (opt.30) | |
| 油壓馬達 HP | 2 | ||
| 伺服馬達(NC型) KW | 3 | ||
| 包裝尺寸/重量 | 淨重(大約)kg | 5800 (12760lbs) | |
| 毛重(大約)kg | 7100 (15620lbs) | ||
| 長x寬x高 mm | 3070 × 2250 × 2160 (121" x 89" x 85") | ||
* 我们保留修改上述任何机器规格的权利，恕不另行通知。
特点
- Balancing Stand
- Coolant System W/Mag. Sep. &Paper Filter
- Coolant System W/Paper Filter
- Input Rail & Output Rail (L:8" / Ea)
- Long Thrufeed Guides (6ft/Ea) W/Stands
- 備用砂輪
- 備用砂輪套
- Thrufeed Blade (Various Sizes)
- Infeed Workrest (STD)
- Infeed Blade (Various Sizes)
- Hydraulic Auto Infeed Attachment
- Air Eject Attachment
- Electrical Eject Attachment
- Wheel Balance System
- Loading System (Conveyor Type)
- Receiver
- Automatic Loading For Thrufeed
- HYD.Forming Attachment
- Forming Plate /Forming Arbor

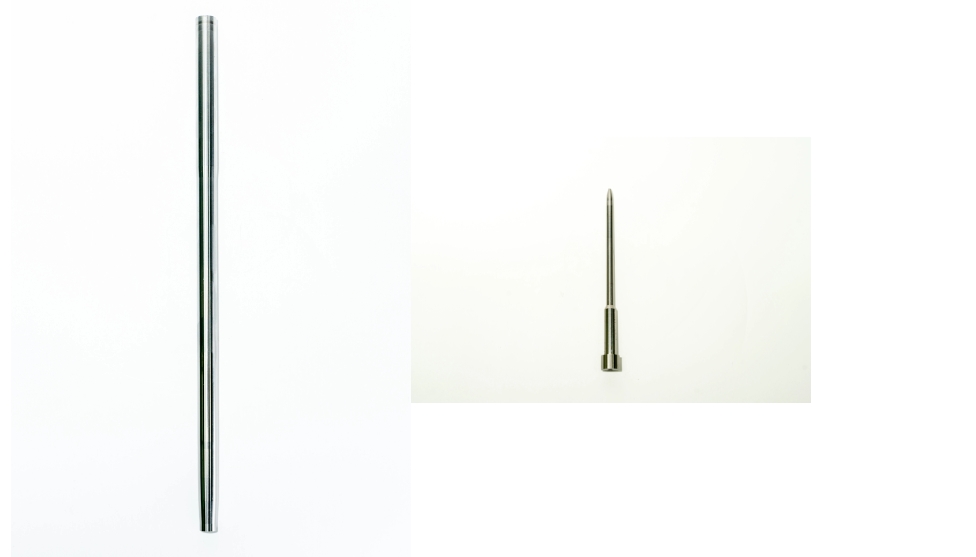

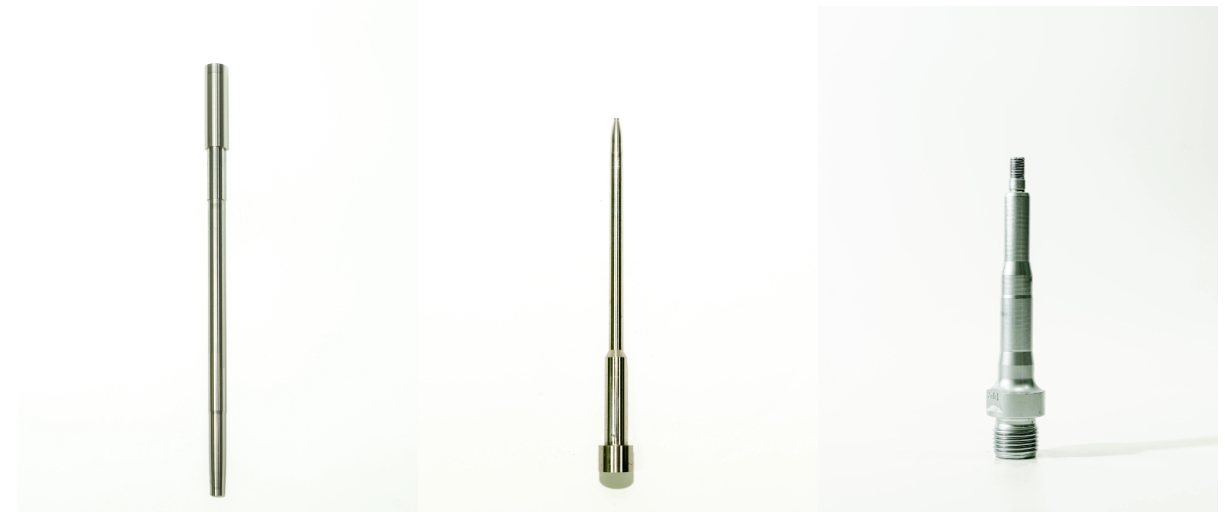

应用
